Features Gallery Product Description Request A Quote

Features

Specifications

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction WorksÂ

Showroom Location: Egypt, Viet Nam, Philippines, India, Thailand, Kenya, Chile, UAE, Bangladesh, South Africa, Nigeria

Condition: New

Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine

Brick Raw Material: Concrete Cement Sand Fly Ash

Processing: Brick Production Line

Method: Vibratory Compaction

Automatic: Yes

Production Capacity (Pieces/8 Hours): 24s/pallets

Voltage: 220v/380v/415v/440v

Dimension(L*W*H): 4200x1800x2800mm

Warranty: 1 Year

Key Selling Points: Easy To Operate

Brick Size: 400*100*200 Mm, 400*120*200 Mm, 200*100*60 Mm, 300*150*100 Mm, 400*150*200 Mm, 240*115*90 Mm, 200*200*60 Mm, 150*150*100 Mm, 400*200*200 Mm, 230*220*115 Mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: PLC, Gear, Motor, Bearing, Gearbox

Block Type: Hollow , Solid ,paver,curbstone

Color: Customied

Molding Cycle: 24s

Keywords: Brick Making Mahcine

Material: Sand Flyash Cement Stone

Pallet Size: 850*550*20mm

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Viet Nam, Philippines, Thailand, Chile, UAE, Bangladesh, South Africa, Nigeria

After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Certification: ISO9001/QA

Basic Infomation

Certification: ISO9001/QA

Payment & Shipping Terms

Packaging Details: no package

Product Description

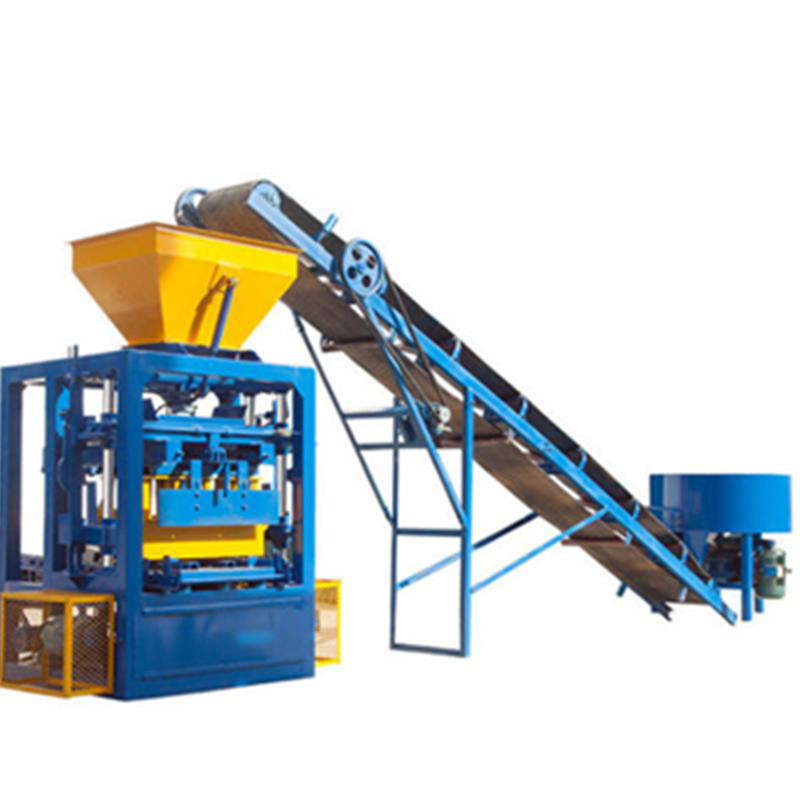

QT4-24 easy operate semi automatic manual interlock brick making machine for sale

QT4-24 easy operate semi automatic manual interlock brick making machine for sale is our hot sell products , very easy to operate . The cost is low , suitable for new block maker .Just need to change the mold then you can produce many kind of blocks .This machine is widely used and work well in Southeast asia , Africa and South America, get many good feedback.

Main Parts

Name	QT4-24 easy operate semi automatic manual interlock brick making machine for sale
Dimension	2060x1730x2580mm
Power	22.05kw
Molding time	24s
Vibration force	35.5kn
Pallets size	850x550x20mm
Voltage	380/415/440 and others as design
Work area	60㎡

Name	JD350 mixer
Output capacity	350L
Input capacity	560L
Capacity	4m³/h
Weight	840KG
Dimension	1270X1250X1250MM
Power	7.5kw

Name	wd-4 stacker
Lifting motor	1.5kw
Moving motor	1.5kw
Cycle	15-20s
Weight	2500kg
Dimension	2500x1800x2300mm

PLC control cabinet

Block Molds

Machine Advantage

National standard steel Q235B

hardness and wear-resistant ability is 1.3 times better than common steel and carbon dioxide gas protection welding.

High qulity Block Molds

The mould are all treated by High temperature carburizing.The service life are 3 times longer than normal one

Siemens motors

Famous brand quality, ensure the machine to run steadily and safely, long service life

Wire-electrode cutting

Special mold production using line cutting method, mold size more accurate, according to customer requirements to customize the mold

Siemens PLC

Siemens PLC is adopted for accurate control and smooth operation,Machines are smarter.

Touch screen

Fully automatic machine with touch screen, easy to operate and not easy to damage

Machine Features:

1.This machine is vibration molding , the final block compressive strength can reach 15 mpa . it is controled by PLC , very easy to operate . and has high efficiency , reasonable design .

2.Good adaptability of raw materials, advanced step vibration molding technology . can use slag , fly ash and other industry residue

3. It can make many kind of block by changing molds .Cater to the market demand to the greatest extent, let the equipment maximize the efficiency.

Capacity

It is a small semi automatic concrete block molding machine which is specialized in construction building block such as hollow block , solid block , paver block , porous brick , road kerb , grassing brick , ring tree brick and other concrete products .The material can be fly ash , cinder , coal gabgue and other industrial residue .

Packing and delivery

Our Service

1.Machine Color Customized as your requirements

2.Engineers draw drawings as your design and brick shapes can be customized

3.We will test the machine before delivery , make sure the machine is run well

4.We can send engineer to your country , help you install ,debugging the machine and train your workers

5.Come to visit ourfactory, free training

6. 24 hours online support .provide you best Pre-sale and after-sales service

Customer Case

Company Introduction

Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China. With RMB 16 million investment and 53,000 square meters area, it is a high-tech development enterprise with a high starting point. Its main business covers autoclaved aerated concrete production line, large and medium-sized non-burning brick machine, high-strength gypsum powder extraction equipment.
