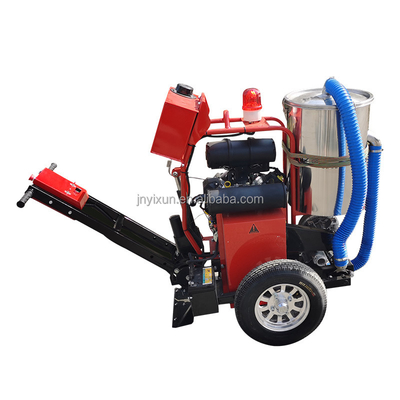

Slotting machine 5050 parameters | |
(1) Composition: It is composed of slotting machine and vacuum cleaner. | |
(2) Way of walking: pulling and walking backward | |
(3) Power: Kohler CH747 electric start 25 horsepower air-cooled, two-cylinder, four-stroke gasoline engine | |
Slotting: power ≥16P, electric start; | |
Dust collection: power≥5.5P, start by hand. | |
(4) Slotting speed: 0-20m/min | |
(5) Slotting/clearing depth: 10-50mm. | |
(6) Slotting width: 10-50mm. | |
(7) Blade: diameter 180/200mm; standard 180mm blade (maximum groove depth 30mm); 200mm blade (maximum groove depth 50mm) 5 pieces (root According to the required slotting width, reasonably select the number of blades and spacers) | |
(8) Feeding method: 12V electric lifting rod lifting. | |
(9) Dust collector: 1 set | |
(10) Dust removal method: gravity filter element dust removal | |
(11) induced draft fan: coaxial centrifugal large flow negative pressure induced draft fan | |
(12) Dust storage bucket: detachable | |
(13) Filter element: louver (polyester material) | |
(14) Handle: foldable operation | |
(15) The volume of the dust suction box is ≧38L, and the dust suction and filtration area is 6m². | |
(16) No dust during grooving work. | |
(17) Working length, width and height: 1960*830*1250mm, Handle folded size: 1250*830*1250mm | |
(18) Net weight: 197kg |
