concrete hollow core slab machine / precast hollow core slab machine
Ling-Feng produces pre-stressed hollow core slabs height of 200 mm, 220 mm, 265 mm, 320 mm and 400 mm. Width across the lower edge is 1200 mm (-5 mm). Length is determined by the customer in accordance with the project and can be up to 19 meters.
Hollow core slabs are manufactured by extrusion. As main reinforcement used high-strength ropes K-7 with a diameter of 9 to 15 mm. Number and diameter of rope needed for the production, determined by the type of hollow core slab reinforcement, depending on operational load.

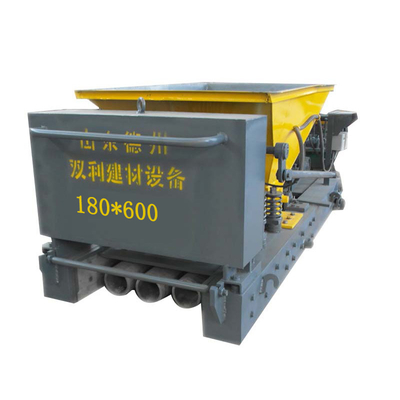

the parameter of the concrete hollow core slab machine
|
Concrete Hollow Core Slab Machine |
Motor power(kw) |
Vibrator power(kw) |
Weight (kg) |
Forming speed(m/min) |
Holes No. |
Dia. of holes |
Dimension LxWxH (m) |
|
50x500 |
3 |
0.8 |
700 |
1.2-1.4 |
8 |
Φ25 |
1.80x0.75x0.65 |
|
50x500+80x500 |
4.0 |
1.5 |
930 |
1.2-1.4 |
6 |
Φ25 (Φ42) |
2.03x0.73x0.66 |
|
60x500+80x500 |
4.0 |
1.5 |
910 |
1.2-1.4 |
7 |
Φ25 (Φ42) |
2.03x0.83x0.66 |
|
90x600 |
4.0 |
2.2 |
955 |
1.2-1.4 |
6 |
Φ50 |
2.10x0.84x0.73 |
|
100x600 |
4.0 |
2.2 |
975 |
1.2-1.4 |
6 |
Φ60 |
2.10x0.85x0.73 |
|
120x600 |
5.5 |
3.0 |
1050 |
1.2-1.4 |
5 |
Φ76 |
2.10x0.85x0.75 |
|
120x900 |
7.5 |
3.0 |
1580 |
1.2-1.4 |
8 |
Φ76 |
2.50x1.30x0.90 |
|
120x1200 |
7.5 |
3.0 |
1650 |
1.2-1.4 |
11 |
Φ76 |
2.50x1.70x0.90 |
|
120x600 |
5.5 |
3.0 |
1150 |
1.2-1.4 |
5 |
Φ76 |
2.30x1.10x0.90 |
|
180x600 |
7.5 |
3.0 |
1290 |
1.2-1.4 |
3 |
Φ130 |
2.30x1.10x0.95 |
Load and span of hollow core slab---
|
Slab size (Thickness x Width)(mm) |
Max. length (m) |
Max. load (Kn/m2) |
Dia. of steel when max. load (mm) |
No. of steel when max. load |
Holes No. |
|
100x600 |
5.1 |
8.11 |
Φ7 |
5 |
6 |
|
120x600 |
6.0 |
8.86 |
Φ7 |
6 |
5 |
|
150x600 |
7.5 |
10.24 |
Φ9.5 |
5 |
4 |
|
180x600 |
9.0 |
16.16 |
Φ12.7 |
4 |
3 |
|
100x900 |
5.1 |
9.76 |
Φ7 |
10 |
10 |
|
120x900 |
6.0 |
8.86 |
Φ7 |
9 |
8 |
|
150x900 |
7.5 |
10.24 |
Φ9.5 |
10 |
6 |
|
180x900 |
9.0 |
16.16 |
Φ12.7 |
9 |
5 |
|
200x900 |
10.2 |
13.22 |
Φ12.7 |
7 |
6 |
|
250x900 |
12.6 |
11.10 |
Φ12.7 |
7 |
6 |
|
300x900 |
15 |
10.83 |
Φ12.7 |
8 |
5 |
1.the design of the lightweight concrete wall panel forming machine‘s motor stander is very stable
2.the lightweight concrete wall panel forming machine‘s eccentric wheel is thicker than others
3.front wheel at the very top of the lightweight wall panel machine so can better make sure keep balance
4.there are three places in which we weld alloy,side board,and our alloy's quality is excellent,the working life can up to 8-10 ten thousand meters .
5.our vibrator come from HeNan ANYANG ,which is the best factory manufacture the machines in China
Shuangli Building Materials Machinery Factory is specialized in the production of precast concrete molding machine,including Concrete hollow cored slab making machine, concrete slab machine,concrete lintel machine, precast concrete hollow core slab extruder,concrete purlin machine, concrete column making machine, lightweight concrete wall panel machine, and concrete pipe making machine, concrete mixing machine,concrete batching plant machine,etc.The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.
