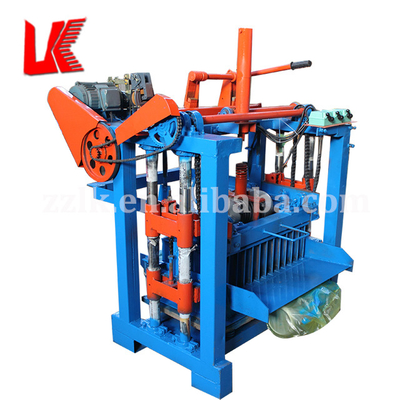

Interlocking cement block machine in Dubai, concrete interlocking paving brick making machine in UAE

1 Set
MOQ
Interlocking cement block machine in Dubai, concrete interlocking paving brick making machine in UAE
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Hollow Block Making Machine, Concrete Interlocking Bricks Making Machine
Brick Raw Material: Cement,crushed Stone,sand,water
Processing: Brick Molding Machine
Method: Mould Vibration
Automatic: Manual/semi-automatic
Production Capacity (Pieces/8 Hours): 2400-17500/8 Hours
Model Number: QMJ4-35A
Voltage: 380V, 380V
Power: 4.8KW
Dimension(L*W*H): 1350*1300*1600mm
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: CE/ ISO9001
Weight: 750kg
Color: Customerized
Type Of Enterprise: Manufacture
Molding Cycle: 35 Seconds/mold
Pallet Size: 850*540*30mm
Block Size 1: 390*240*190 Mm
Block Size 2: 390*190*190mm
Block Size 3: 240*115*90mm
Basic Infomation
Certification: CE/ ISO9001
Model Number: QMJ4-35A
Payment & Shipping Terms
Packaging Details: LCL, packaged by wooden boxes or tin trunks of concrete interlocking bricks making machine FCL, packaged by 20ft container or 40ft container.
Supply Ability: 200 Set/Sets per Month concrete interlocking bricks making machine
Product Description
Product Description

Interlocking block machine in dubai, concrete interlocking paving bricks making machine in uae

concrete interlocking bricks making machine can produce minitype hollow block which is widely used in construction.

It consists of cement, sand, pisolite and other materials with high hollow ratio, low cost investment, quick effectiveness.It has an easy production process, less investment and can have a large-scale production.

Technical Parameters
Details
1
Model
QMJ4-35A
2
Voltage
380V
3
Power
4.8KW
4
Molding Cycle
35 seconds/mold
5
Pallet size
850*500*30 mm
6
Dimension( L*W*H )
1350*1300*1600 mm
7
Weight
750 kg
Block/brick type and output
Block size (mm)
Molding Cycle
Pieces/Mold
0utput (8 Hours)
390*240*190
35 s
3 pcs.
2400 pcs.
390*190*190
35 s
4 pcs.
3000 pcs.
390*120*190
35 s
6 pcs.
5000 pcs.
240*115*90
35 s
9 pcs.
7400 pcs
240*115*53
35 s
21 pcs.
17500 pcs
Please Note: The block/brick size can be customized.
Video links

Please check the concrete interlocking bricks making machine 's video links on YouTube for more details:


Link 1----Testing of the Manual/Semi-automatic QMJ4-35A Manual brick maker for producing the 200*100*60mm paving bricks: https://youtu.be/z4XtcO35mdQ

Link 2----testing machine for producing the 400*150*200mm hollow blocks:  https://youtu.be/E2Up616lHJ0

Link 3----testing machine for producing the 600*160*200mm slab hollow blocks: https://youtu.be/eflk_DqSVWw

Detailed Images

Specific details of concrete interlocking bricks making machine



      Motors

         Quantity: 4 pieces of motors
         Power: 4.8 kw
         (3*1.1 kw+1*1.5 kw
)

Electromagnetic Arrester

Fast response, simple structure.

Control mode frame and press head stop.

Molds

High quality and durable.which can be customized.

One set of free molds will come with main machine.

Our Service

Pre-Sales Service

*Real and Effective PRICES.
*Production quality protection and Shipment on-time.
*Payment production.

After-Sales Service

*The quality guarantee is 12 months after installation and commissioning.
Packing & Delivery

LCL---- Packaged by wooden boxes or tin trunk.

FCL---- Packaged by 20ft container or 40ft container.

Our Company

Zhengzhou Lianke Machinery Manufacture Co.,Ltd

Founded in 1985 as a government-owned enterprise, and then regrouped and re-registered in 2008 as a private company. Zhengzhou Lianke Machinery Manufacture Co.,Ltd is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of mainly building material making machinery, and mining machinery such as cement roof tile machine, terrazzo making machine, paving block machine, Manual brick maker , mining processing equipment, crusher, electric dumper truck, etc.
