1. Production Application

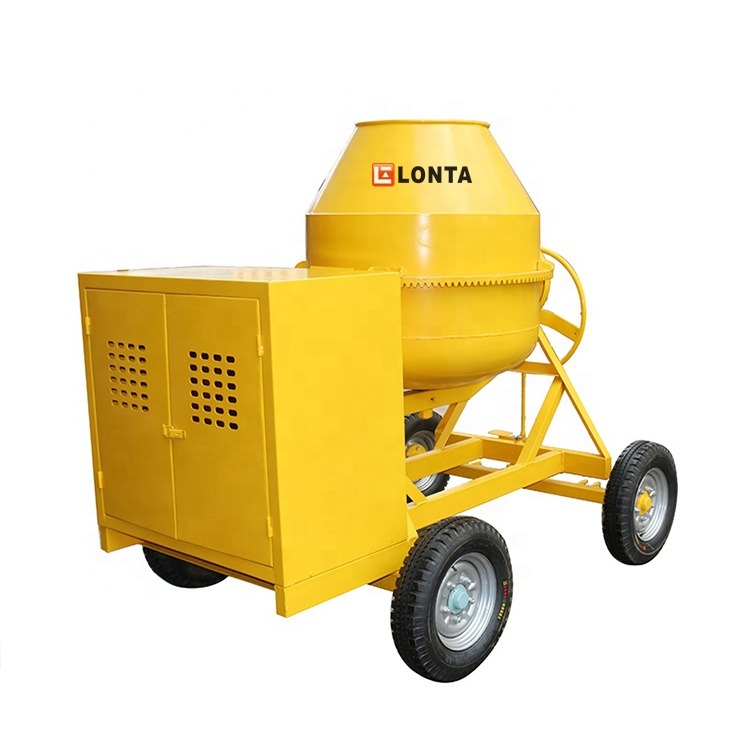

LONTA JH SEIRES Concrete Mixer are driven by Diesel, Gasoline engine or Electric motor.
This machine is used for mixing concrete, small quantities of drywall mud, plaster, stucco, mortar, and more. It is suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members,also you can choose as household mixer.
|
Type |
JH350 |
JH350S |
JH400 |
JH400S |
JH500 |
JH500S |
JH700S |
|
|
Drum Capcity |
350L |
400L |
500L |
700L |
||||
|
Mixing Capacity |
280L |
320L |
400L |
560L |
||||
|
Productivity |
4-5m³/h |
5-6m³/h |
6-8³/h |
8-10³/h |
||||
|
Bags of Cement Per Batch |
1Bag |
1Bag |
1.5Bag |
2Bag |
||||
|
Drum Rotation Speed |
25-30rpm |
25-30rpm |
20-25rpm |
20-22rpm |
||||
|
Drum thickness |
3/4mm(upper/bottom) |
3/4mm(upper/bottom) |
3/4mm(upper/bottom) |
3/4mm(upper/bottom) |
||||
|
Drum Size |
Φ800*900mm |
Φ850*900mm |
Φ950*900mm |
Φ950*1050mm |
||||
|
Tyre size & Number |
2* (4.00*12) |
4* (4.00*12) |
2* (4.00*12) |
4* (4.00*12) |
2* (4.00*12) |
4* (4.00*12) |
4*(5.00*12) |
|
|
Power Option |
Diesel, Gasoline,Electric (Different Brands for client’s wild choices) |
|||||||
|
Overall size |
1960*1200*1650mm |
2100*1200*1700mm |
2160*1200*1750mm |
2200*1500*1950mm |
||||
|
Packing Size |
1860*860*1100mm |
1960*960*1200mm |
2060*1060*1250mm |
2200*1060*1300mm |
||||
|
Loading Plan in assembles |
14sets in 20GP, 28sets in 40HQ |
12sets in 20GP, 24sets in 40HQ |
12sets in 20GP, 24sets in 40HQ |
5sets in 20GP, 20sets in 40HQ. |
||||
|
Loading Plan in bulk |
26sets in 20GP, 60sets in 40HQ |
26sets in 20GP, 54sets in 40HQ |
26sets in 20GP, 54sets in 40HQ |
/ | ||||
2.LONTA JH SERIES CONCRETE MIXER FEATURES
1. We machine each gear ring by automatic lathe.
Every gear ring will be machined by our automatic lathe before assembling on the drum of mixer. This necessary working will make the drum turning smoothly and silently.
2. All-steel construction, Mini Concrete Mixer has long life span.
3.Diesel/gasoline/electric motor,optional as customers' requirement.
4.Spray painted surface,colour as your request. Mini Concrete Mixer is rust- proof.
5.water supply mode:direct input
6.Discharging:semi-automatic
7. We have our own loading plan, it can loads more quantities than other suppliers, it could help you to save the average cost.
.
Packing and Loading
1.Standard export packing or according to customer`s requirements
2.use crane/fork-list to load the machines into the container
3.use the wire to fasten the machines in order to keep them stable
4.use the cork wood forbid collision
